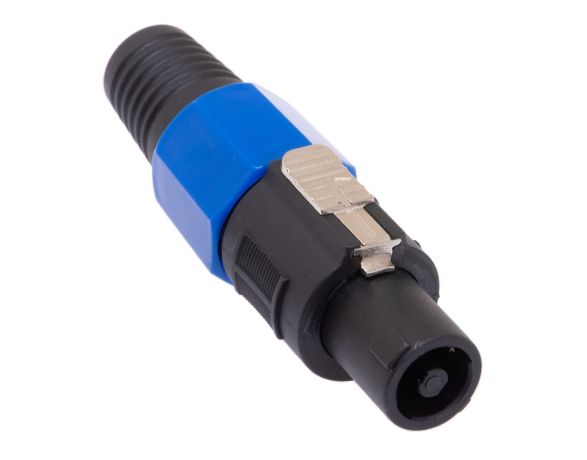

speakON 4 Pole Female Connector
This product has been discontinued
SpeakON connectors are often used for high-current audio applications. The speakON connectors have become standard connectors for amplifiers and loud speakers. This speakON 4-pole connector is designed for bi-amped audio applications. It also features solid contacts with screw-type terminals, including a stranded wire protection, which offer also solder termination.
Features:
- Current rating 30 A RMS
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov
Q: What is a speakON connector and what is it used for used for?
A: The speakON is a loudspeaker connector which is designed for highest mechanical and electrical loads and fulfill all safety standards. They are used to transmit high electrical currents from an amplifier to loudspeakers. Due to speakON's mating mechanism arcing is prevented and electric shocks cannot happen.
Q: Will a 2 pole speakON connector mate to a 4 Pole connector?
A: Yes the two-pole line connector will mate with the four-pole panel connector connecting to +1 and −1; but the reverse combination will not work.
Q: How do I wire a speakON cable?
| Features & Specs | ||
|---|---|---|
| Form factor | The form factor of this connector? | Straight |
| Style | The style of this connector? | Solder |
| Gender | The gender of this connector? | Female |
| Conductor Material | The material the conductor is made from? | Nickel Plated Brass |
| Housing Material | The material this body is made from? | Plastic |
