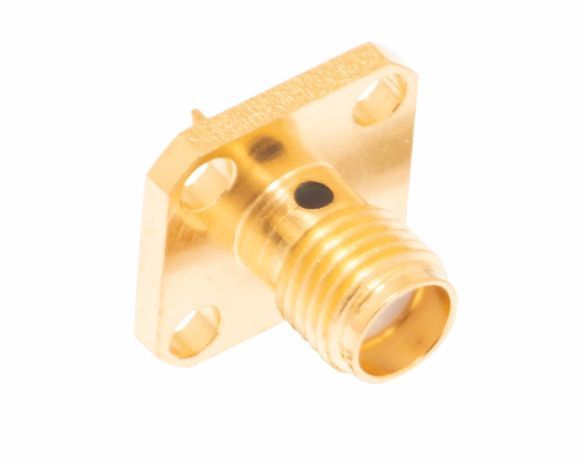

Pasternack PE4000 - SMA Female Solder Connector 4 Hole Flange - .340 IN Hole
SKU
PE4000
50 Ohm | 18 GHz Max Frequency | 4 Hole Flange | .340 Inch Hole Spacing
| Quantity Discount Pricing | |||
|---|---|---|---|
| 1-24 | 25-49 | 50-99 | 100+ |
| $34.19 | $32.48 | $30.77 | $29.40 |
Quantity Available: 6
The Premium Pasternack PE4000 SMA Female Solder with a 4 hole flange connector is a high-grade solution for adapting existing connections on your cables and equipment. With a maximum frequency of 18 GHz, this 50 Ohm connector provides unsurpassed quality and reliability for your mission-critical systems.
Features
- SMA Female (MIL-STD-348)
- 4 Hole Flange
- .340 IN Hole Spacing
- Solder Cup Terminal
- 50 Ohm
- 18 GHz Max Frequency
- 1.25:1 Max VSWR
- Gold Over Nickle Plated Beryllium Copper Contact
- Rack and Panel Mount Applications
- RoHS and REACH Certified
- Pasternack PE4003
