Ortronics Clarity 10G TracJack
SKU
TJ610-XX
Cat6a | A/B Universal Wiring | IDC Rear Termination | ETL Certified | UL Certified

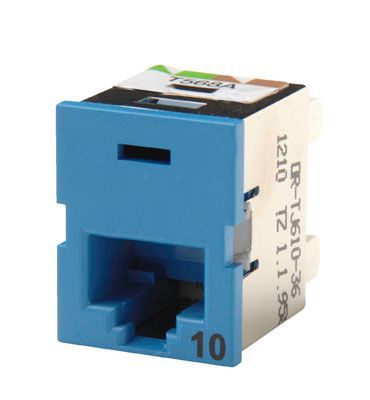

Ortronics Clarity 10G TracJack
The Ortronics Clarity 10G TracJack Information Outlet is a high speed data outlet designed to be installed in a faceplate at the work location. This jack is front- loaded and removeable. It fits all TracJack faceplates and housing units. High impact plastic ensures durability. ETL Tested as part of a 100 meter 10 Gig channel solution. Center tuned Clarity 6a patch cords for significant performance above Category 6a.
Features:
- Category 6a
- 26-22 AWG
- Easy lace IDC housing
- Universal T568A/B Wiring
- RoHS Compliant
- ETL Certified
- UL Certified
Write Your Own Review
TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks | ||||
IDC | T568A | T568B | ||
Terminals | Pair | Wire Color | Pair | Wire Color |
PIN5 | 1 | White/Blue | 1 | White/Blue |
PIN4 | Blue | Blue | ||
PIN1 | 3 | White/Green | 2 | White/Orange |
PIN2 | Green | Orange | ||
PIN3 | 2 | White/Orange | 3 | White/Green |
PIN6 | Orange | Green | ||
PIN7 | 4 | White/Brown | 4 | White/Brown |
PIN8 | Brown | Brown |
