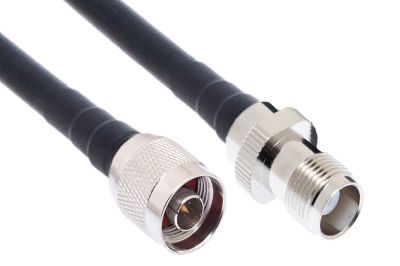

N Male to TNC Female Low Loss 240 Coaxial Assembly
SKU
28-256-XXX
50 Ohm Wi-Fi Cable | Solid Bare Copper | Polyethylene Jacket | LMR-240 Equivalent
Low Loss 240 Coaxial Cable - 75FT N Male to TNC Female
Designed to deliver high performance with minimal loss, Low Loss 240 (LMR-240 equivalent) assemblies are the standard for the wireless LAN industry. With a durable Polyethylene jacket, these cables are suited for indoor and outdoor installations.
Features:
- Connector 1: N Male
- Connector 2: TNC Female
- Cable Type: ShowMeCable Low Loss 240 (LMR-240 Equivalent)
- 50 Ohm
- Polyethylene (PE) Jacket suitable for Indoor or Outdoor Use
- Applications: Wi-Fi, Antenna Cables, Ham Radio, Patch Cables, Jumper Cables, WLL, GPS, WLAN, LMR, WISP, WiMax, SCADA, Mobile Antennas
Write Your Own Review
Q: What is a Reverse Polarity Connector?
A: A Reverse Polarity Connector alters a standard connector by utilizing a male pin center conductor in a female housing or a female pin in a male housing. This prevents mating with a standard non-polarized connector.
Q: What is the difference between Low Loss 240 and LMR 240
A: The only difference between Low Loss 240 and LMR240 is the manufacturer. Both cables are made out of the same materials and have the same loss characteristics.
Wi-Fi Cable Connector Resource | ||
Connector Type | Front View | Profile View |
Reverse Polarity SMA | ||
Standard SMA | ||
Reverse Polarity TNC | ||
Standard TNC | ||
Standard BNC | ||
Standard FME | ||
Standard N Series | ||
Standard UHF | ||
