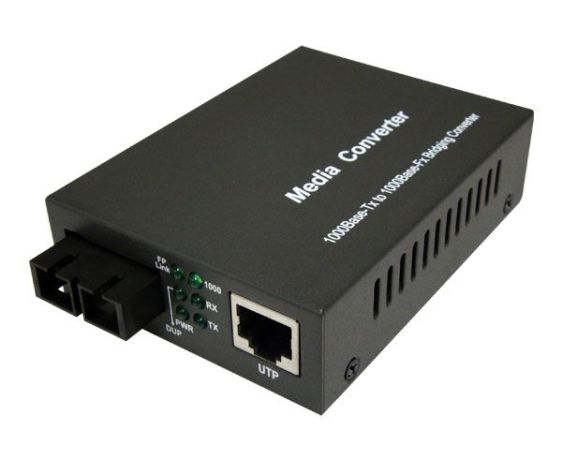

Multimode Media Converter - 1000Base-TX to 1000Base-FX - RJ45 to Duplex SC
This product has been discontinued
1000 Base-TX to 1000 Base-FX | 550M Range | Convert RJ45 to Multimode SC Fiber Network
Multimode Media Converter - 1000Base-TX to 1000Base-FX - RJ45 to Duplex SC
This 1000M adaptive pure gigabit ethernet media converter is used for high speed optical transmissions via ethernet and is capable of switching between twisted pair and optical transmission for relaying across 1000 Base-TX and 1000 Base-Fx network segments. It achieves high speed interconnection for up to 550M relay free. With steady and reliable performance, it is applicable in a wide variety of fields such as, IP data transfers, telecommunications, cable television, railway, finance and securities, customs, aviation, shipping, and is ideal to build broadband campus networks, or intelligent FTTB/FTTH networks. This unmanaged media converter provides an interface between 1000BASE-TX RJ45 Ethernet and 1000BASE-FX multimode duplex SC ports, allowing users to integrate fiber optic cabling into 1000Base-TX copper environments.
Features:
- 550M Relay Free
- Ethernet standards IEEE802.3, 1000Base-TX and 1000Base-FX
- Multimode SC Optical Port
- RJ45 Port for Twisted Pair
- Auto-Adaptation Rate & Full/Half-Duplex Mode Supported at RJ45 Port
- Conflicting Frames Detection in Half Duplex Mode
- Flow Control in Full Duplex Supported
- Auto MDI/MDIX Supported w/o Cable Selection
- 6 LEDs for Status Indication
- External and Built-In DC Power
- Up to 1024 MAC Addresses Supported
- 512kb Data Storage Integrated
- 802.1X original MAC Address Authentication Supported
- NIC Transmission Rate: 1000Mbit/s
- NIC Transmission Mode: 1000M
- Optical Port Data Rate: 1000Mbit/s
| Fault Description | Cause Description | Maintenance |
| Power LED Lamps are off |
Haven't connected the power cord or it doesn't have a good connection. | Make sure the power cord is connected correctly and make sure there is a good connection. |
| Link/Act LED Lamp is off |
1. Haven't Connected the electrical cables to the electrical port or it doesn't have a good connection. | Make sure the power cord is connected correctly and make sure there is a good connection. |
| 2. Used the wrong electrical cables for electrical connection. | Used the wright electrical cables for electrical connection. | |
| 3. Any fault with the NIC and the terminal of Ethernet | Make sure the NIC and the Ethernet port are working correctly | |
| FX & FX-Link/Act LED Lamps are off |
1. There may be a fault with the optical devices | Check the fiber optical devices and the fiber connection to see of they are working correctly. |
| 2. The optical fiber has broken down or there is a bad connection. | ||
| 3. The optical fiber is over-loss | ||
| TX and FX LED Lamps are normal but the data can not be transmitted |
1. The Connection between the optical fiber and devices is not valid, this will cause the TX power not to work correctly. | Check the fiber connectors and make sure the connections between optical fibers and devises are valid. |
| 2. The system only gets power for a moment. If there are any changes in the network it may take a little while for media converters to adapt. | If it still is not working after waiting a few minutes and all connections have been completed correctly, then turn off the power and unplug the power cord, wait for a few minutes and then reconnect the power cord turn device back on and try again. |
