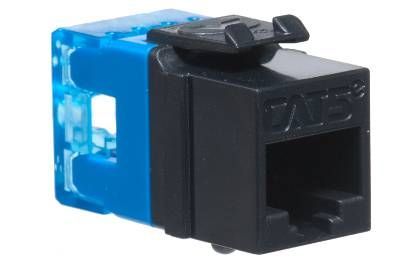

ICC Cat5e RJ45 Punchdown Keystone Jack - High Density
SKU
IC1078F5XX
8P8C | 110 IDC Termination | 180 Degree Orientation | HD Style | Cat5e Rated | Gold-Plated Contacts
ICC's High Density Cat5e Modular Jacks are designed to maximize the number of jacks in a patch panel, wall plate, or surface-mount box. The IDC terminations are oriented 180 degrees from the Cat5e jack, which allows easy access in a high-density install. A color-coded sticker shows the wiring configuration for both TIA 568-A or TIA 568-B.
Features:
- Manufacturer:ICC
- Connector: RJ45
- Rear Termination: 110 type IDC Termination
- Color: Black
- Meet EIA/TIA Cat 5e Standard
- TSB 568A or 568B UL-Listed
Write Your Own Review
TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks | ||||
IDC | T568A | T568B | ||
Terminals | Pair | Wire Color | Pair | Wire Color |
PIN5 | 1 | White/Blue | 1 | White/Blue |
PIN4 | Blue | Blue | ||
PIN1 | 3 | White/Green | 2 | White/Orange |
PIN2 | Green | Orange | ||
PIN3 | 2 | White/Orange | 3 | White/Green |
PIN6 | Orange | Green | ||
PIN7 | 4 | White/Brown | 4 | White/Brown |
PIN8 | Brown | Brown |
