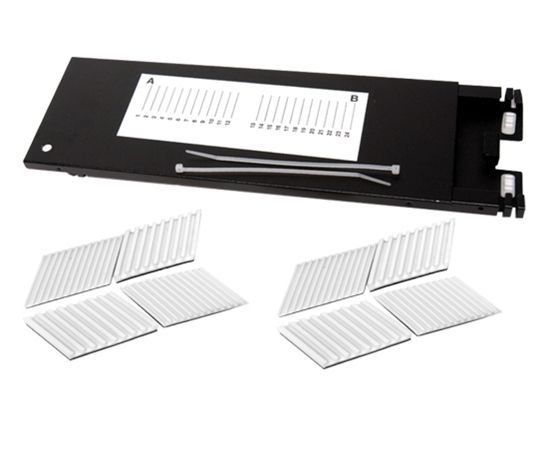

Fiber Optic Splice Tray - Plastic Base w/ Aluminum Cover - 24 Single Fiber Fusion
Plastic Base w/ Aluminum Cover | Protects and Organizes Splices | 24 Single Fusion Splices | 16 Mechanical Splices | 96 Mass Fusion Splices
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-2 | 3-5 | 6-7 | 8-9 | 10+ |
| $57.99 | $57.99 | $56.99 | $54.99 | $53.99 |
Quantity Available: 0
Fiber Optic Splice Tray - Plastic Base w/ Aluminum Cover - 24 Single Fiber Fusion
Fiber optic splice trays not only provide physical security, but also provide organization for fusion splices. This splice tray can hold 24 single fusion splices, 96 mass fusion splices, or 16 mechanical splices. Included with the splice tray are adhesive backed fiber insert holders, assorted cable ties, and left or right facing splice holders. Your fiber network is only as reliable as its connections. Make sure yours is properly secured with our dependable fiber splice trays.
Features:
- Plastic Base w/ Aluminum Cover
- Splice Capacity:
- 24 Single Fusion Splices
- 16 Mechanical Splices
- 96 Mass Fusion Splices
- Items Included:
- Adhesive Backed Fiber Insert Holders
- Left or Right Facing Splice Holders
- Assorted Cable Ties
- Dimensions - 12.25" L x 4" W x .5" D
- Provides Protection and Organization of Splices
Differences Between Mechanical, Mass, and Single Fusion Splices:
By using a fusion splicer the machine will precisely align two fiber ends before fusing them together using an electric arc. Fusion splicing can be performed as a single fusion (fusing just one fiber at a time) or as a mass fusion (fusing 12 fibers in a single operation).
Mechanical splicing doesn't permanently join two fibers together. Instead, it precisely holds them together enabling light to pass through.
