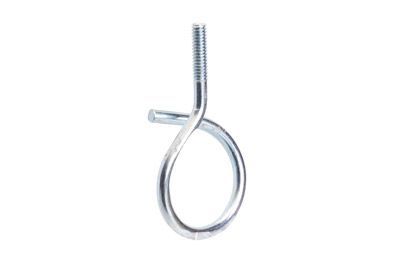

Bridle Ring
Bridle Rings are used to support and organize low voltage wires and cables. They are a fast and cost effective way to support voice, data, and video cables from different structures. These bridle rings are very versatile and are designed with an open loop for easy cable insertion. Bridle rings do not require any tools for installation. Just screw the bridle ring into your clamp and run your cable.
Features:
- Load Rating: 50 Lbs.
- 1/4-20 Threading
| Material | Metal |
|---|
Q: How much distance should I put between each of my cable supports?
A: You don’t want to put too much weight on any type of cable support. It is a good idea to put a cable support such as a J-Hook or Bridle Ring every 4 to 5 feet. This ensures that your cables will not stretch or fall under too much weight.
Q: What kind of support do I need for data cabling?
A: When you are dealing with sensitive high performance data cables such as fiber optic cables you need to use either J-Hooks or Bridle Rings with saddles. For all other cable types you can use any type of cable support such as standard Bridle Rings.
