BNC Male to N Female Adapter
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $12.19 | $9.59 | $8.79 | $7.99 | $7.19 |
Quantity Available: 1149

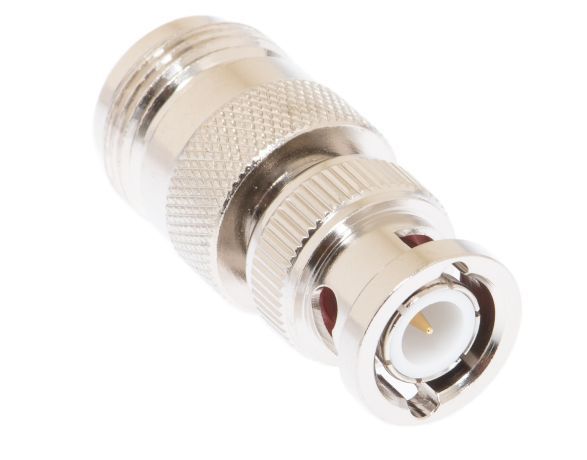

This nickel-plated coaxial adapter has an N female connector opposite a BNC male connector.
Features:
- Connector A: BNC male
- Connector B: N female
- Brass body
- Nickel-plated
- Straight
Q: What does BNC stand for?
A: BNC stands for Bayonet Neill-Concelman. They are named after the bayonet locking mechanism and their inventors.
Q: What are BNC connectors commonly used for?
A: BNC connections are typically used on RF video and ethernet applications.
Q: How can I tell the difference between a 75 ohm and 50 ohm BNC connector?
A: On a 50 ohm connector the center pin is surrounded by a white dialectric. On a 75 ohm BNC connector is surrounded by air (no dialectric)
Q: Can a 50 ohm and 75 ohm BNC connector be connected together?
A: 50 ohm and 75 ohm BNC connectors will mate with each other. At frequencies under 10 MHz the impedance mismatch will not have any affect. If you are above 10 MHz the chances of signal distortion becomes more significant.
| Features & Specs | ||
|---|---|---|
| Adapter Type | The type of adapter? | BNC to N |
| Form factor | The form factor of this connector? | Straight |
| Gender | The gender of this connector? | BNC Male to N Female |
| Material | The material this connector is made from? | Brass with nickel plating |
