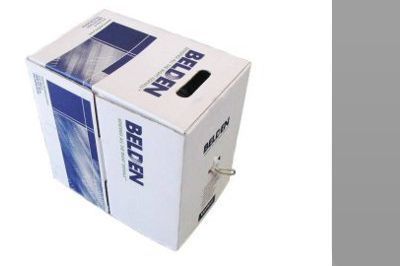

Belden 9729 - 2 Pair 24 AWG Shielded PVC Digital Audio Cable 1000 FT
1000 FT | 2 Pair | 24 AWG stranded (7x32) tinned copper conductors | Datalene® insulation | twisted pairs | individually Beldfoil® shielded (100% coverage) | 24 AWG stranded tinned copper drain wire | PVC jacket.
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-1 | 2-4 | 5-9 | 10-14 | 15+ |
| $4,230.00 | $3,950.00 | $3,790.00 | $3,620.00 | $3,460.00 |
Quantity Available: 0
Belden 9729 is a low capacitance, digital audio cable used in EIA RS-232/422 applications. The Belden 9729 cable has a nominal impedance of 100 Ohm and comes with 2 pairs of 24 AWG stranded tinned copper conductors. Our Belden 9729 cable is protected from RFI and EMI interference by a 100% Aluminum foil-Polyester tape Beldfoil® shield. Each conductor is individually shielded and insulated by Datalene® FPE. Datalene® insulation features low dielectric constant and a dissipation factor for high-speed, low distortion data handling. The jacket is CM rated PVC. Order a Belden 9729 in bulk now to take advantage of same business day shipping! Or if you prefer to buy Belden 9729 cable by the foot, then see this page.
Features:
- 100 Ohm
- 2 Pair/24 AWG
- Stranded Tinned Copper Conductors
- Conductors are Individually Shielded
- 24 AWG Drain Wire
- 100% Aluminum Foil-Polyester Tape Beldfoil® Shield
- Datalene® Insulation FPE (Foamed Polyethylene)
- Good Crush Resistance/Light Weight
- CM Rated PVC Jacket
- UL Listed
- RoHS Certified
- 1000 Feet
- Max Continuous Length: 1000 FT
Please note: All products that are bought per foot are non-returnable.
Any amount of Belden 9729 cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.
