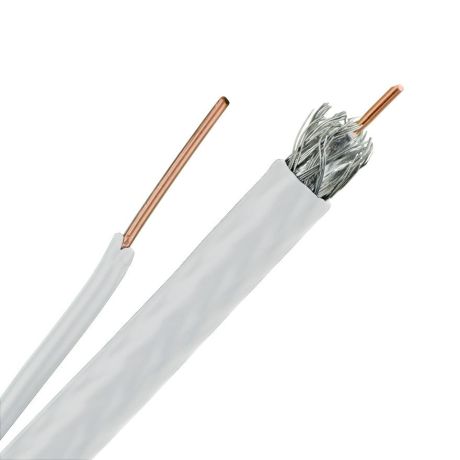

RG6 with a ground wire is commonly used for digital HDTV, CATV, satellite television, and outdoor TV antennas installations. This cable features a CL2/CMX rated PVC jacket. Internally this cable is protected from RFI and EMI interference by a 60% aluminum braid and 100% aluminum foil shield. The center conductor is sweep tested to 3.0 GHz and is made from 18 AWG Solid Copper. The attached ground makes properly grounding your satellite dish or outdoor antenna easy. This bulk cable comes in a high-quality easy pull box and can be measured and cut to exact distances. RG6 is commonly terminated with an F-Type, BNC, or RCA connector.

Features:

75 Ohm
18 AWG Solid Copper Conductor
60% Braid/100% Foil Shield
Ground Wire
CMX Rated
PVC Jacket
Sweep-Tested to 3 GHz.
Professional Grade
Digital and Analog Applications
Foot Markings
1000 Feet

Reviews

Specification

Features & Specs
Cable Type	The type of cable described?	RG6 Dual Shield w/Ground
Impedance	Impedance of cable?	75 ohms
Center Conductor	The type of material used in the center conductor of the cable??	Copper Clad Steel (CCS)
Center Conductor Diameter	Diameter of center conductor in inches?	.0403'
Dielectric	Material used as dielectric in the cable??	Foam PE (Polyethylene)
Jacket Material	The type of material used in the jacket of the cable?	Polyvinyl chloride (PVC)
Cable Diameter	Diameter in inches of cable?	.270'
