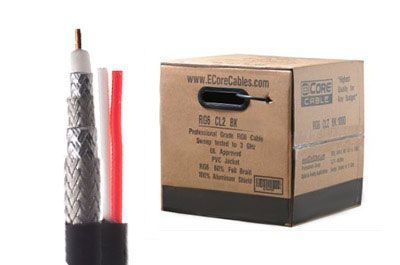

RG6 95% Shield Coax Cable with 18/2 Power - BC - Black - 500 FT
SKU
80-600-310 BK:500
500 FT | 75 Ohm | 18 AWG | Shielded | PVC | CM/CL2 Rated | Tested to 3 GHz | UL Listed
Quantity Discount Pricing | ||||
---|---|---|---|---|
1-1 | 2-4 | 5-9 | 10-14 | 15+ |
$321.99 | $287.99 | $277.99 | $267.99 | $259.99 |
Quantity Available: 4
The CCTV RG6 with 18/2 Power wire Coaxial Cable has a siamese PVC jacket, making it suitable for closed circuit television applications. This cable features a CL2/CM rated PVC jacket. Internally this cable is protected from RFI and EMI interference by a 95% bare copper braided shield. The center conductor is sweep tested to 3.0 GHz and is made from 18 AWG solid copper-clad steel. The power wire is made from 1 pair 18 AWG stranded pure copper. This bulk cable comes in a high-quality wooden spool and can be measured and cut to exact distances. RG6 is commonly terminated with an F-Type, BNC, or RCA connector.
Features:
- 75 Ohm
- 18 AWG Solid Copper Conductor
- 95% Braid
- CM/CL2 Rated
- UL Listed
- PVC Jacket
- Sweep-Tested to 3 GHz.
- Professional Grade
- Digital and Analog Applications
- RoHS Compliant
- Foot Markings
- 500 Feet
Write Your Own Review
Features & Specs | ||
---|---|---|
Cable Type | The type of cable described? | RG6 95% Copper Shield w/Power |
Impedance | Impedance of cable? | 75 ohms |
Center Conductor | The type of material used in the center conductor of the cable?? | Bare Copper (BC) |
Center Conductor Diameter | Diameter of center conductor in inches? | .0403' |
Dielectric | Material used as dielectric in the cable?? | Foam PE (Polyethylene) |
Jacket Material | The type of material used in the jacket of the cable? | Polyvinyl chloride (PVC) |
Cable Diameter | Diameter in inches of cable? | .266' |
