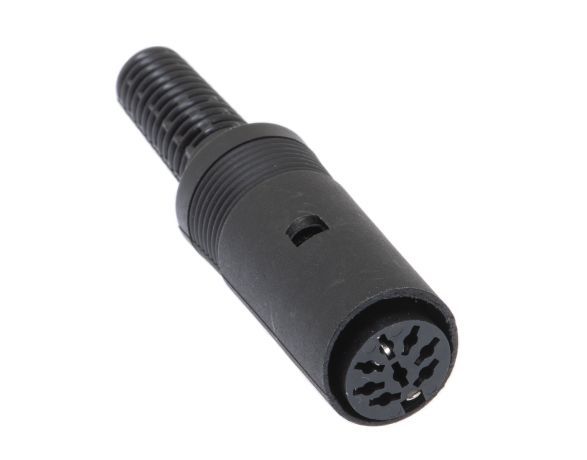

7 Pin DIN Female Solder Connector - Plastic
SKU
1741
7 Pins | Solder Cups | Plastic | Molded Strain Relief | 22 AWG Wire | 7mm Cable
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $4.19 | $3.67 | $3.43 | $3.25 | $3.13 |
Quantity Available: 54
The 7 Pin DIN Female Solder Connector is economic and lightweight. The jack comes in four parts and can be easily disassembled for access to the solder cups. The 7 Pin DIN Female Connector accepts up to 22 AWG wire. The solder cups are easy to work with and the eyes are easy to thread. The 7 Pin DIN Female Connector is designed with molded strain relief and accepts cables up to 7mm.
Features:
- 7 Pin DIN Female
- Plastic
- Lead Type: Solder Cups
- Molded Strain Relief
- Accepts 22 AWG Wire
- Accepts Cable up to 7mm
Please Note:
- Connector uses an 8 pin DIN housing, while only 7 conductors are present
- Compatible with all 7 pin DIN male connectors
