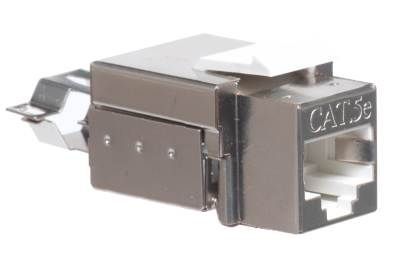

Cat5e RJ45 Shielded Punchdown Keystone Jack
SKU
15-167-500 SH
8P8C | Prevents Interference | 110 IDC Termination | Cat5e Rated | Gold-Plated Contacts
Quantity Discount Pricing | ||||
---|---|---|---|---|
1-24 | 25-49 | 50-99 | 100-249 | 250+ |
$9.49 | $8.99 | $8.49 | $8.09 | $7.59 |
Quantity Available: 395
Shielded Cat5e jacks can be used in conjunction with shielded patch cables to prevent electromagnetic interference (EMI). Shielded jacks are most commonly needed in industrial facilities or other environments where power lines or sophisticated electrical devices are being used near the cable lines.
Features:
- Connector: RJ45
- Rear Termination: 110-Style Punchdown
- Shielded
- Meets EIA/TIA Cat5e Standard
Write Your Own Review
TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks | ||||
IDC | T568A | T568B | ||
Terminals | Pair | Wire Color | Pair | Wire Color |
PIN5 | 1 | White/Blue | 1 | White/Blue |
PIN4 | Blue | Blue | ||
PIN1 | 3 | White/Green | 2 | White/Orange |
PIN2 | Green | Orange | ||
PIN3 | 2 | White/Orange | 3 | White/Green |
PIN6 | Orange | Green | ||
PIN7 | 4 | White/Brown | 4 | White/Brown |
PIN8 | Brown | Brown |
Features & Specs | ||
---|---|---|
Connector | The connector used on the product.? | RJ45 |
Rear | What type the rear is.? | 110 Type IDC Termination |
Contacts | What the contacts are made of.? | Gold-Plated |
Insert | The type of insert it is.? | Keystone |
